Subnetting breaks down a given network address into smaller subnets. Coupled with other technologies like Network Address Translation (NAT) and Port Address Translation (PAT), it allows for the more efficient use of available IP address space, thereby alleviating the problem of address depletion to a great extent. Subnetting has guidelines regarding the use of the first and the last subnets, known as subnet zero and the all-ones subnet, respectively.

Subnet Zero

If a network address is subnetted, the first subnet obtained after subnetting the network address is called subnet zero.

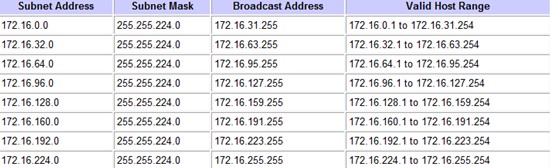

Consider a Class B address, 172.16.0.0. By default the Class B address 172.16.0.0 has 16 bits reserved for representing the host portion, thus allowing 65534 (216-2) valid host addresses. If network 172.16.0.0/16 is subnetted by borrowing three bits from the host portion, eight (23) subnets are obtained. The table below is an example showing the subnets obtained by subnetting the address 172.16.0.0, the resulting subnet mask, the corresponding broadcast addresses, and the range of valid host addresses.

In the example above, the first subnet (subnet 172.16.0.0/19) is called subnet zero.

Using subnet zero for addressing was discouraged because of the confusion inherent in having a network and a subnet with indistinguishable addresses.

With reference to our example above, consider the IP address 172.16.1.10. If you calculate the subnet address corresponding to this IP address, the answer you arrive at is subnet 172.16.0.0 (subnet zero). Note that this subnet address is identical to network address 172.16.0.0, which was subnetted in the first place, so whenever you perform subnetting, you get a network and a subnet (subnet zero) with indistinguishable addresses. This was formerly a source of great confusion.

Prior to Cisco IOS® Software Release 12.0, Cisco routers, by default, did not allow an IP address belonging to subnet zero to be configured on an interface. However, if a network engineer working with a Cisco IOS software release older than 12.0 finds it safe to use subnet zero, the ip subnet-zero command in the global configuration mode can be used to overcome this restriction. As of Cisco IOS Software Release 12.0, Cisco routers now have ip subnet-zero enabled by default, but if the network engineer feels that it is unsafe to use subnet zero, the no ip subnet-zero command can be used to restrict the use of subnet zero addresses.

The All-Ones Subnet

When a network address is subnetted, the last subnet obtained is called the all-ones subnet.

With reference to the example above, the last subnet obtained when subnetting network 172.16.0.0 (subnet 172.16.224.0/19) is called the all-ones subnet.

The class of the network subnetted and the number of subnets obtained after subnetting have no role in determining the all-ones subnet. Also, when you write the binary equivalent of the subnet zero address, all the subnet bits (bits 17, 18, and 19 in this case) are ones, hence the name.
