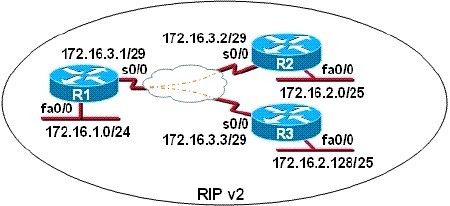

11.S0/0 on R1 is configured as a multipoint interface to communicate with R2 and R3 in the hub-and-spoke Frame Relay topology shown in the exhibit. Originally, static routes were configured between these routers to successfully route traffic between the attached networks.What will need to be done in order to use RIP v2 in place of the static routes?

A.Configure the no ip subnet-zero command on R1, R2, and R3.
B.Dynamic routing protocols such as RIP v2 cannot be used across Frame Relay networks.
C.Configure the s0/0 interface on R1 as two subinterfaces and configure point-to-point links to R2 and R3.
D.Change the 172.16.2.0/25 and 172.16.2.128/25 subnetworks so that at least two bits are borrowed from the last octet.
E.Change the network address configurations to eliminate the discontiguous 172.16.2.0/25 and 172.16.2.128/25 subnetworks.
Correct:C

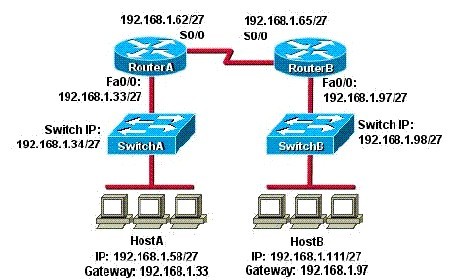

12.Refer to the exhibit. HostA cannot ping HostB. Assuming routing is properly configured, what could be the cause of this problem?

A.HostA is not on the same subnet as its default gateway.
B.The address of SwitchA is a subnet address.
C.The Fa0/0 interface on RouterA is on a subnet that can’t be used.
D.The serial interfaces of the routers are not on the same subnet.
E.The Fa0/0 interface on RouterB is using a broadcast address.
Correct:D

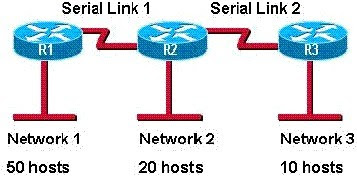

13.Refer to the exhibit. The routers are running RIPv2. Which addressing scheme would satisfy the needs of this network yet waste the fewest addresses?

A.Network 1: 192.168.10.0/26 Network 2: 192.168.10.64/26 Network 3: 192.168.10.128/26 Serial link 1:192.168.20.0/24 Serial link 2: 192.168.30.0/24
B.Network 1: 192.168.10.0/26 Network 2: 192.168.10.64/28 Network 3: 192.168.10.80/29 Serial link 1:192.168.10.88/30 Serial link 2: 192.168.10.96/30
C.Network 1: 192.168.10.0/26 Network 2: 192.168.10.64/27 Network 3: 192.168.10.96/28 Serial link 1:192.168.10.112/30 Serial link 2: 192.168.10.116/30
D.Network 1: 192.168.10.0/27 Network 2: 192.168.10.64/28 Network 3: 192.168.10.96/29 Serial link 1:192.168.10.112/30 Serial link 2: 192.168.10.116/30
Correct:C

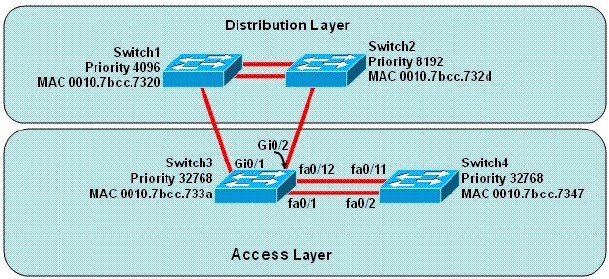

14.Refer to the exhibit. At the end of an RSTP election process, which access layer switch port will assume the discarding role?

A.Switch3, port fa0/1
B.Switch3, port fa0/12
C.Switch4, port fa0/11
D.Switch4, port fa0/2
E.Switch3, port Gi0/1
F.Switch3, port Gi0/2
Correct:C

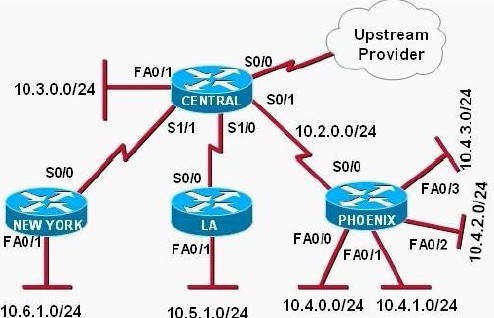

15.Refer to the exhibit. The Lakeside Company has the internetwork in the exhibit. The administrator would like to reduce the size of the routing table on the Central router. Which partial routing table entry in the Central router represents a route summary that represents the LANs in Phoenix but no additional subnets?

A.10.0.0.0/22 is subnetted, 1 subnets D10.0.0.0 [90/20514560] via 10.2.0.2, 6w0d, Serial0/1
B.10.0.0.0/28 is subnetted, 1 subnets D10.2.0.0 [90/20514560] via 10.2.0.2, 6w0d, Serial0/1
C.10.0.0.0/30 is subnetted, 1 subnets D10.2.2.0 [90/20514560] via 10.2.0.2, 6w0d, Serial0/1
D.10.0.0.0/22 is subnetted, 1 subnets D10.4.0.0 [90/20514560] via 10.2.0.2, 6w0d, Serial0/1
E.10.0.0.0/28 is subnetted, 1 subnets D10.4.4.0 [90/20514560] via 10.2.0.2, 6w0d, Serial0/1
F.10.0.0.0/30 is subnetted, 1 subnets D 10.4.4.4 [90/20514560] via 10.2.0.2, 6w0d, Serial0/1
Correct:D

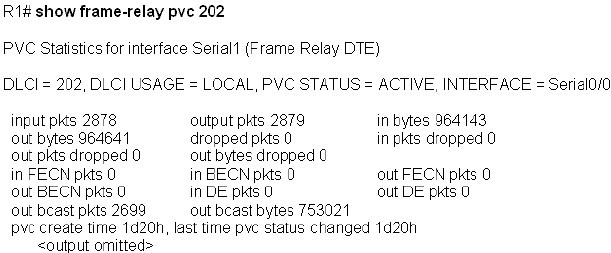

16.Refer to the exhibit. What does STATUS=ACTIVE refer to in the output of the show frame-relay pvc command?

A.The PVC is experiencing congestion.
B.The Frame Relay switch is correctly programmed with the DLCI and is operational.
C.The router is actively broadcasting to establish a link to the Frame Relay switch.
D.The router is connected to the local Frame Relay switch, but not to the far end device.
Correct:B

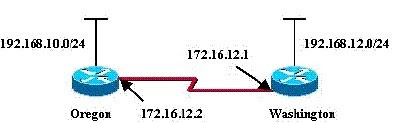

17.The network administrator of the Oregon router adds the following command to the router configuration: ip route 192.168.12.0 255.255.255.0 172.16.12.1. What are the results of adding this command? (Choose two.)

A.The command establishes a static route.
B.The command invokes a dynamic routing protocol for 192.168.12.0.
C.Traffic for network 192.168.12.0 is forwarded to 172.16.12.1.
D.Traffic for all networks is forwarded to 172.16.12.1.
E.This route is automatically propagated throughout the entire network.
F.Traffic for network 172.16.12.0 is forwarded to the 192.168.12.0 network.
Correct:A C

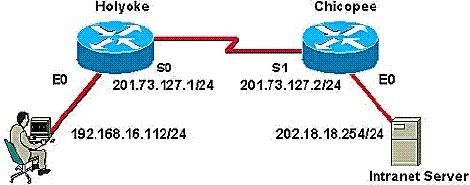

18.Refer to the graphic. Users on the Holyoke router are unable to access the intranet server attached to interface E0 of the Chicopee router. Inspection of the routing table of the Holyoke router shows that an entry for the Chicopee E0 network is missing. Which command will configure the Holyoke router with a path to the intranet server network?

A.Holyoke(config)# ip host Chicopee 201.73.127.2
B.Holyoke(config)# ip host Chicopee 201.73.127.0 255.255.255.0
C.Holyoke(config)# ip network 202.18.38.0
D.Holyoke(config)# ip network 202.18.18.0 255.255.255.0
E.Holyoke(config)# ip route 202.18.18.0 255.255.255.0 201.73.127.2
F.Holyoke(config)# ip route 201.73.127.2 255.255.255.0 202.18.18.0
Correct:E

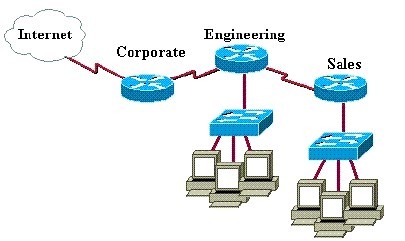

19.A network administrator would like to implement NAT in the network shown in the graphic to allow inside hosts to use a private addressing scheme. Where should NAT be configured?

A.Corporate router
B.Engineering router
C.Sales router
D.all routers
E.all routers and switches
Correct:A

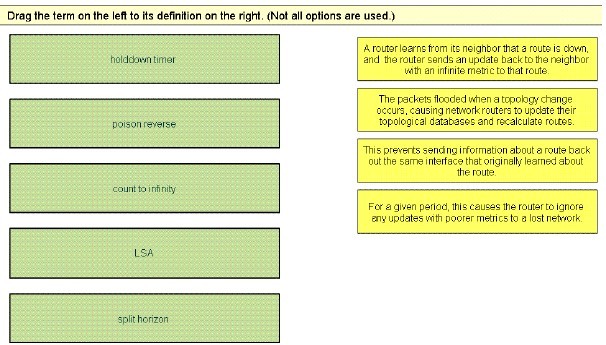

20.Drop and drag question

Correct:
Green choice2—->Yellow Choice1
Green choice4—->Yellow Choice2
Green choice5—->Yellow Choice3
Green choice1—->Yellow Choice4
